Slide Star-Triad Kart wheel Stubs

$60.00$70.00

Kart wheels on triad drift trikes

So you have  Kart wheels and plenty of your own pipe?

This will allow you to mix it up a little and get a wider stance on your trike

Maybe you want Stretched tyres!

Description

 Kart wheels on triad drift trikes

So you have  Kart wheels and plenty of your own pipe?

This will allow you to mix it up a little and get a wider stance on your trike

Maybe you want Stretched tyres!

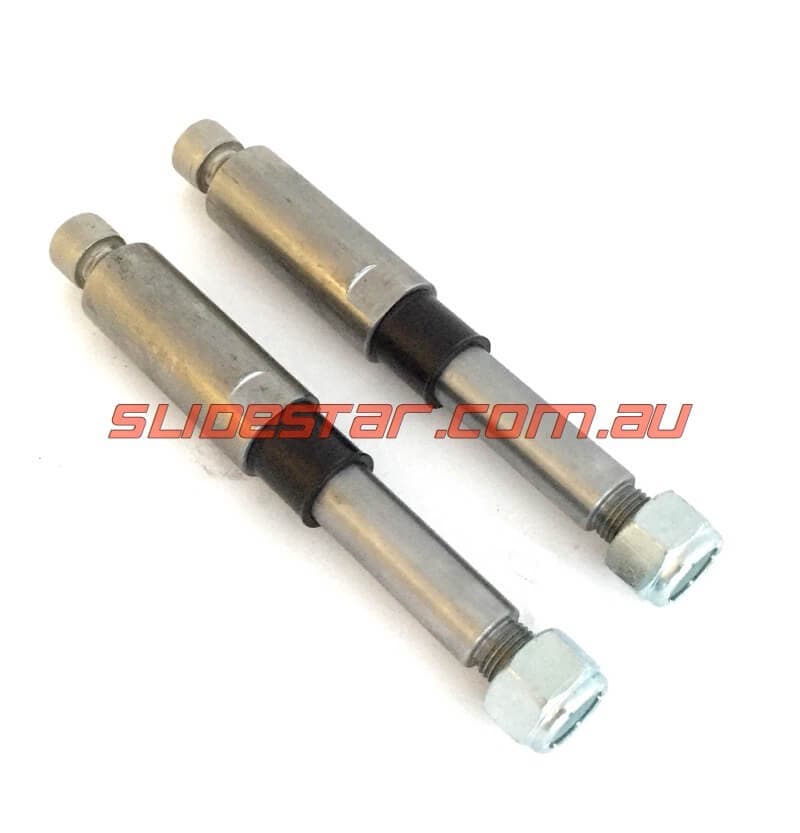

Includes 2 x Stubs with all the fasteners needed

  • New feature now includes shaft lands to hold the axle stubs when tightening
  • CNC Machined Steel construction
  • 70mm of 17mm or 5/8 shaft with adjustment depending on bearing widths in your wheel or hub
  • Optional Black or silver  Alloy Anodised Spacers  2 x 20mm optional 4x 10mm ( comment in the notes when you order)
    “please measure you wheels and hubs and we can help you get it right the first time”
  • Quickfit No mods needed for all triads remember toy select the correct model “Syndicate2” now available
  • Nylock Nut system for ease of removing wheels
  • High tensile mounting bolt and washer

Tools Needed

  • To install the stubs you will need a 10mm Allen Wrench or allen headed socket

Mounting bolt torque specification is 100Nm or 74Ft.Lb

  • Correct installation of the Nylock nut will require a deep  Tube socket or similar 22mm socket

Tighten until bearing seated on stub and back off until spacer turned free

  •  Axle Stubs now have a 22mm or 7/8 land to hold the axle with a wrench when tightening the mounting bolt
  • Stubs come Raw steel “Un-Painted” please paint exposed shaft accordingly to prevent discolouration

Do not paint bearing mounting surface of axle

Duel purpose Axles / Vanguards

If you want to swap between Vanguard wheels and Karts we can help with 17mm bearings that allow Vanguards to fit on 17mm axles









FullSizeRender-2_new












Additional information

Weight 1 kg
Dimensions 20 × 10 × 10 cm
Triad model

Triad series 1-2 Kart Stub, Triad Syndicate 2 Kart Stub

Axle size

17mm Spacers included, 17mm No Spacers, 5/8inch No spacers
