Description

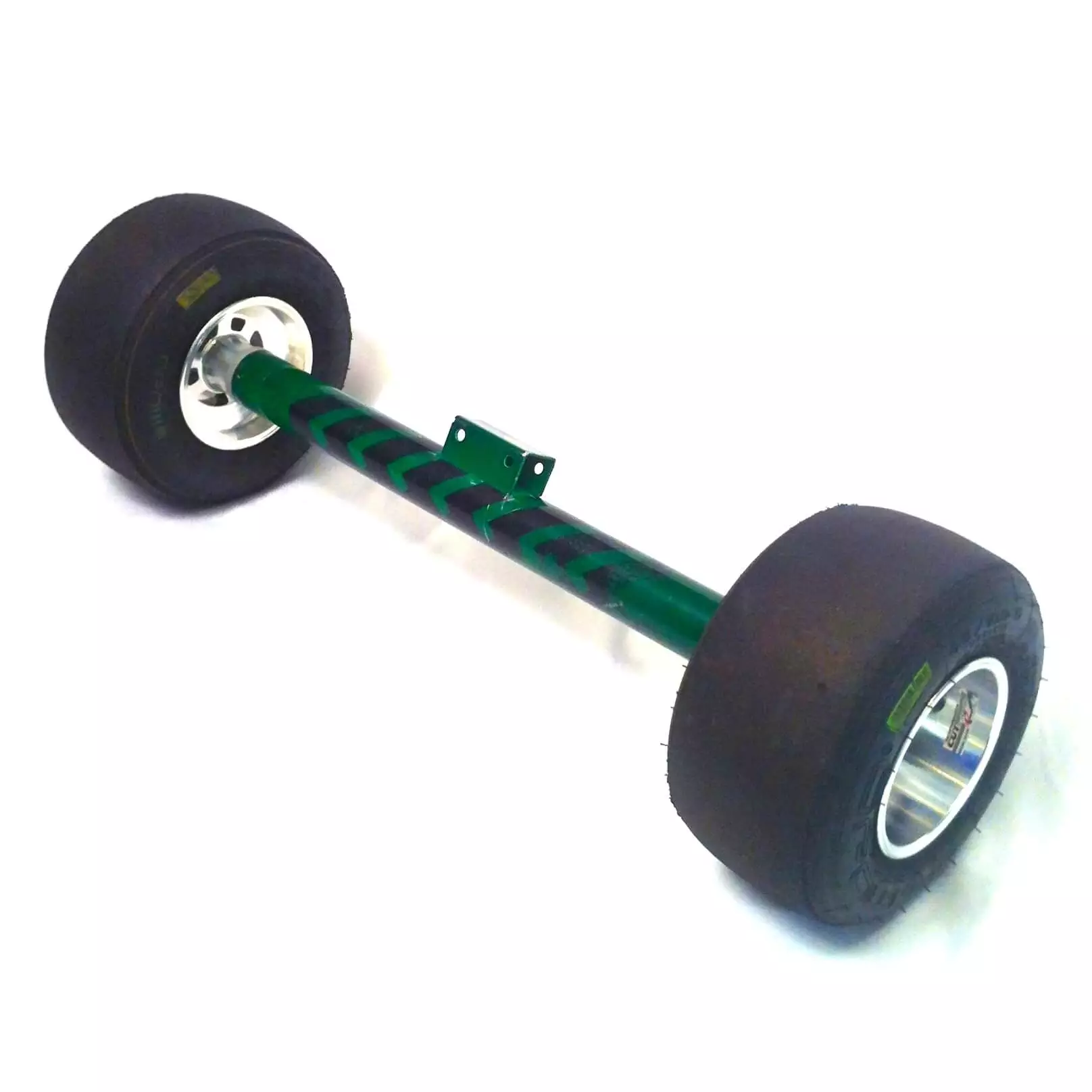

This is the basic kit to get you rolling. It comes with

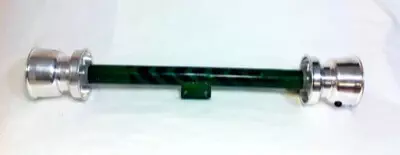

- Two axle tube Supports that you simply knock into your existing axle tube with a soft hammer or wood
- A custom fabricated axle, with thread on each end that will allow varying widths of hubs and front kart wheels
- Two nuts, designed using allen grub screws so that they don’t come undone while you’re sliding
- Two Edwards Futura ( not pictures ) go-kart rims with used 10-4.5-5″ tyres approximately 250mm outside diameter
- Two Crush Tubes so that your axle fits properly and does not come loose

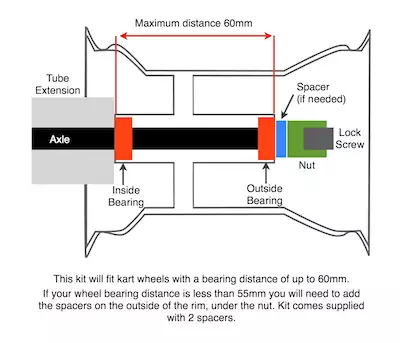

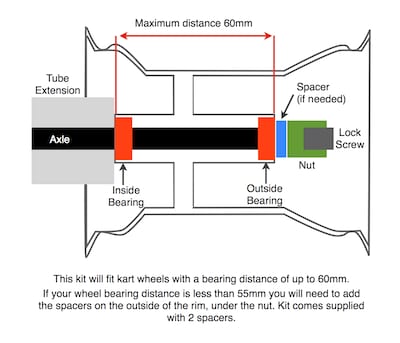

You can see how it all fits together here.

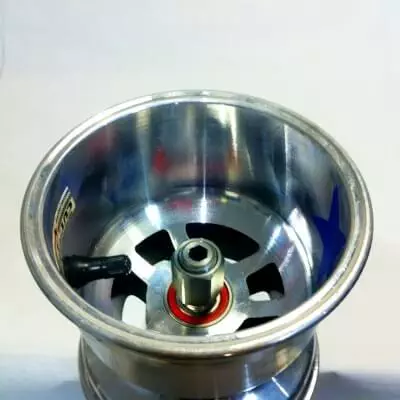

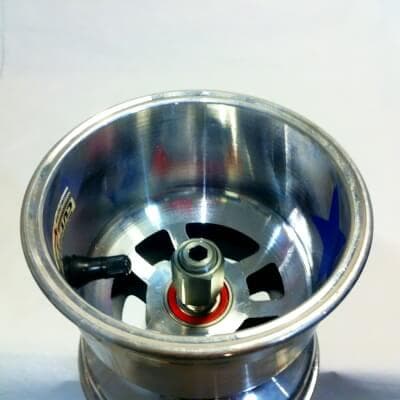

Get the tool… all of our axles have custom fabricated nuts which tighten with an 8mm allen key grub screw (sounds easy enough, I’m sure you have one from that last flat pack you put together) but you need to hold the nut in place with a 22mm spanner while you tighten it… and all of this is around 150mm from easy reach, inside the go-kart rim. It’s a little awkward! But we have created a simple tool to make this dead simple. You can find the tool back on the store or here.
The axles are sandblasted and primed ready for any colour you choose to paint them.
